    1000W 2000W 3000W 6000W CNC Fiber Laser Cutting Machine For Metal Stainless Steel

    Ask Lasest Price
    Brand Name : Xinhong Laser
    Model Number : XH-3015L
    Certification : CE
    Price : USD12000-16000 per set
    Payment Terms : L/C, T/T, Western Union
    Delivery Time : 15-20 workdays
    • Product Details
    • Company Profile

    1000W 2000W 3000W 6000W CNC Fiber Laser Cutting Machine For Metal Stainless Steel

    1000W 2000W 3000W 6000W CNC Fiber Laser Cutting Machine for Metal Stainless Steel

    Product Description

    • The fiber metal laser cutting machine utilizes the advanced Germany IPG laser, integrated with a gantry CNC design developed by our company. It features excellent rigidity and stability, supported by precision ball screws and linear guide drive systems.

    • This machine is primarily designed for cutting sheet metal with high speed and precision.


    Product Features

    • Excellent Beam Quality
      The focused spot creates smaller, more intricate cut lines, resulting in higher productivity and improved processing quality.

    • High Cutting Speed
      This machine operates at speeds that are twice as fast as CO2 laser cutting machines of the same power.

    • High Stability
      It utilizes a top-tier imported fiber laser, ensuring stable performance and a lifespan of up to 100,000 hours for key components.

    • High Electro-Optical Conversion Efficiency
      The fiber laser cutting machine achieves three times the electrical-to-optical conversion efficiency of CO2 lasers, promoting energy savings and environmental sustainability.

    • Low Cost
      Its overall power consumption is only 20-30% of that of comparable CO2 laser cutting machines.

    Techinical Parameters


    1ModelXH-3015LXH4020LXH-6025LXH-8025L
    2Cutting Working Area3000*1500mm4000*2000mm6000*2500mm8000*2500mm
    3Power1500w/2000w/3000w/6000w/12000W
    4Laser Source BrandRaycus/MAX/IPG
    5Laser HeadRaytools
    6Control SystemCypcut
    7Pneumatically PartSMC
    8Guiding RailTaiwan Hiwin
    9Helical RackTaiwan YYC
    10MotorYaskawa Servo
    11Water ChillerHanli
    12Gross weight1200KG
    13Machine WarrantyLifetime

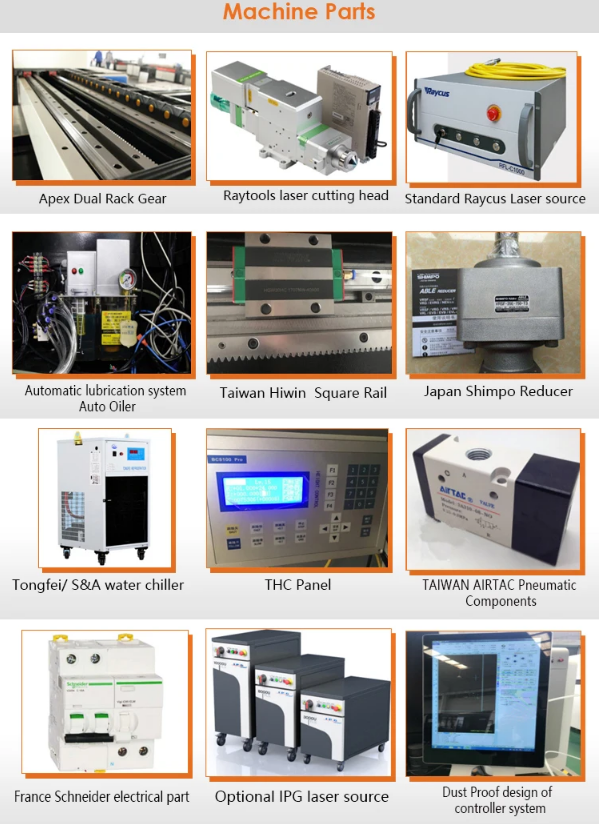

    Machine Main Parts
    More Details
    1.Industrial Machine bed: A solid bed has high stability .It is unmatched by other materials and structures.
    The use of graphite cast iron as a raw material keeps the precision of the machine tool for a long time
    and remains unchanged for 50 years.
    2.Laser Source
    ---Brand:MAX RAYCUS JPT IPG
    ---100000hours life time
    ---e stable, cost-efficient
    ---Free maintenance
    3.control system
    brand:CYPCUT
    Details;edge seeking function and flying cutting function , intelligent typesetting ect
    supported Format:AI,BMP,DST,DWG,DXF,DXP,LAS,PLT,NC,GBX etc...
    4.servo motor
    brand : japan fuji
    details:
    --X axis: one set 850w Japan Fuji servo motor and driver.
    --Y axis: Two set 850w Japan Fuji servo motor and driver
    --Z axis;one set 400w Japan Fuji servo motor and driver
    5.SQUARE RAIL
    brand :Taiwan HIWIN
    Advantage:Low noise,wear-resistant,smooth to keep fast moving speed of laser head
    Detaills:30mm width and 165 four pieces stock on every table to decrease the pressure of rail
    6.water cooling system:
    brand:1000w S&A chiller
    Details:Dual cooling funtion,Hot water for laser head and cool water for laser source to keep them
    around certain temperature and guarantee their normally work
    Samples Show
    Competitive Advantages
    ★The only one company with lifetime warranty to ensure the interests of our buyers
    Factory direct sales, we offer high quality at competitive price
    ★After-sales engineers provide online technology guidance from 8:00am to 24:00am
    ★Text manual and detailed installation video are provided
    ★Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil,
    Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
