Brand Name : | Xinhong Lasser |
Model Number : | XH-CO2 laser cutter |
Certification : | CE,RoHS,ISO9001 certificates |
Price : | USD1100-2100/Set |
Payment Terms : | T/T,Western Union |
Delivery Time : | 10-15 working days |
Supply Ability : | 10000 pcs one year |
★ Product Application
The CO2 laser engraving and cutting machine is widely used in both
industrial settings and everyday life. It is capable of cutting and
engraving a variety of non-metal materials, including acrylic,
wood, plywood, MDF, leather, rubber, and glass.
★ Product Features
The machine operates with the CorelDRAW control system, supporting
multiple languages. Users can import stamp designs into the
software, set the appropriate parameters, and perform cutting and
engraving. It efficiently handles text in various languages, logos,
QR codes, barcodes, patterns, and more.
★ Technical Parameters
1 | Model | XH-4060 | XH-6090 | XH-1390 | XH-1610 |
2 | Cutting Working Area | 400*600mm | 600*900mm | 1300*900mm | 1600*1000mm |
3 | Power | 80W/100W/130W/150W/180W(customizable) | |||
4 | Laser Source Brand | Reci/Yongli | |||
5 | Control System | Ruida sofeware | |||
6 | Engraving speed | 0-800mm/s | |||
7 | Engraving thickness | 1----5mm | |||
8 | Cutting speed | 0-400mm/s | |||
9 | Cutting thickness | 1----15mm | |||
10 | Working material | Non-metallic material | |||
11 | Water Chiller | Hanli | |||
12 | Up and down work table | 0--400mm electric lift(Optional auto focus) | |||
13 | Workbench | honeycomb table or blade table(optional) | |||
14 | Gross weight | 230-420KG | |||
15 | Machine Warranty | 2 years warranty |
★More Machine Details

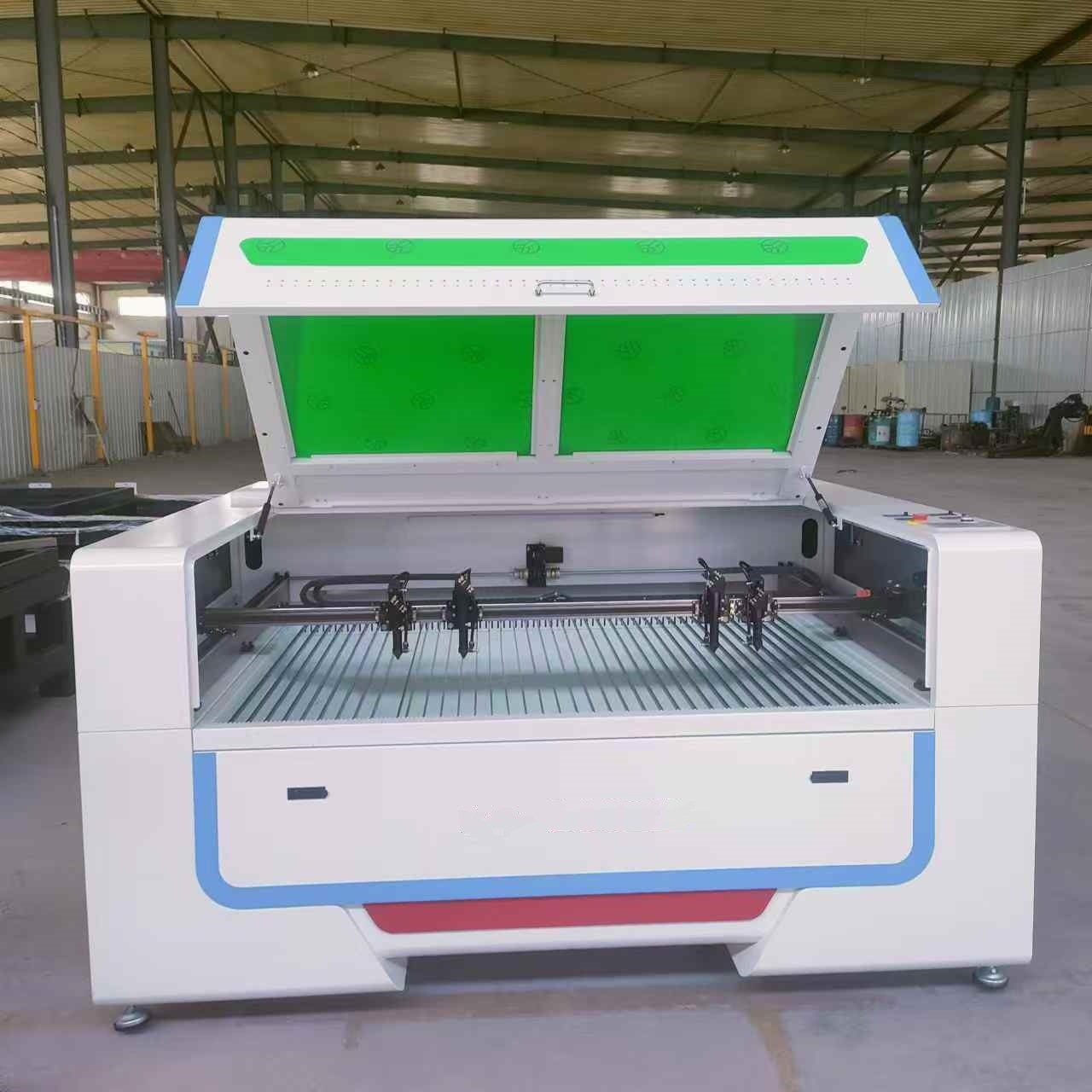

★ 1390 Real Machine with 4-cutting-head Display
★ Sample Show
![]() |
